Reviewing Projects

Overview

The “Reviewer Mode” is designed to facilitate efficient and effective oversight of the labeling process. As a reviewer, your role involves ensuring the accuracy and consistency of labeled data while maintaining a smooth workflow for labelers. This mode provides you with the tools and insights you need to uphold the quality standards of your project.

How it works?

You must have the Reviewer role first to use the Reviewer Mode. Roles in Datasaur can be viewed at the following link.

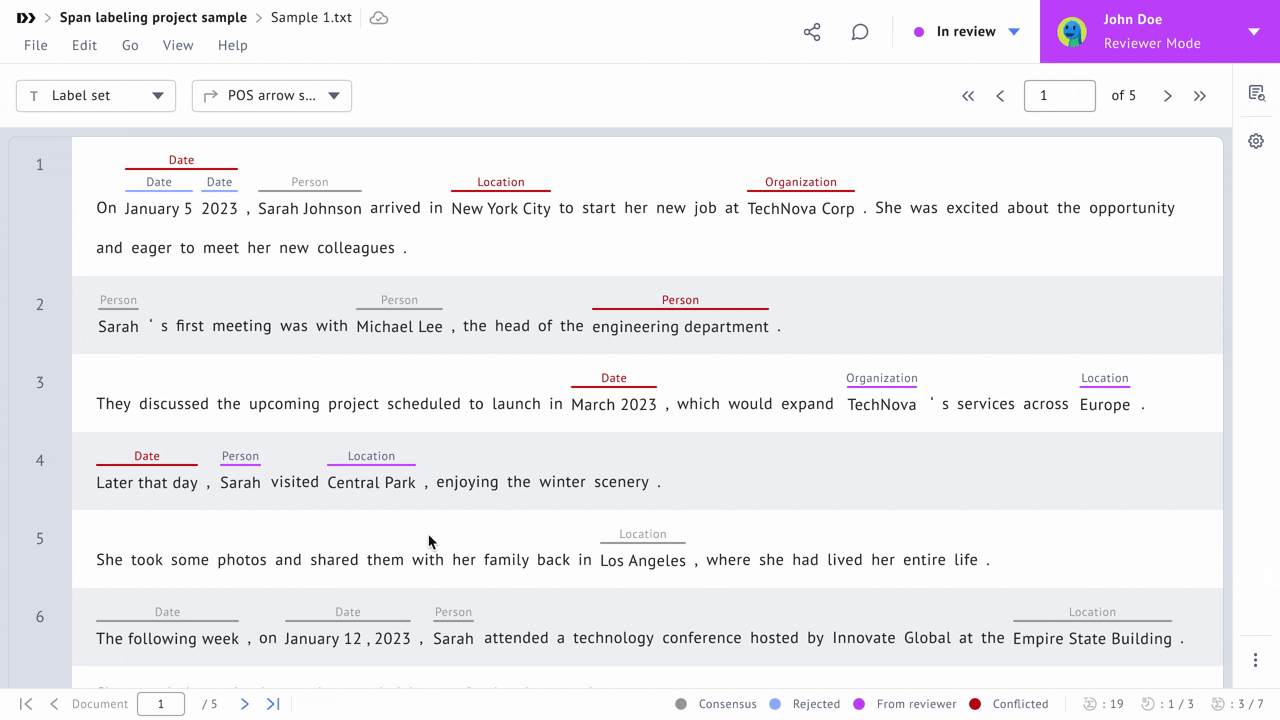

Span Labeling Reviewer Mode

You can see how conflicts in span labeling look. We have three types of conflicts in span labeling:

  1. Contents conflict

  2. Spans conflict

  3. Arrows conflict

For more information about the difference between the three types of conflict, please refer to this link.

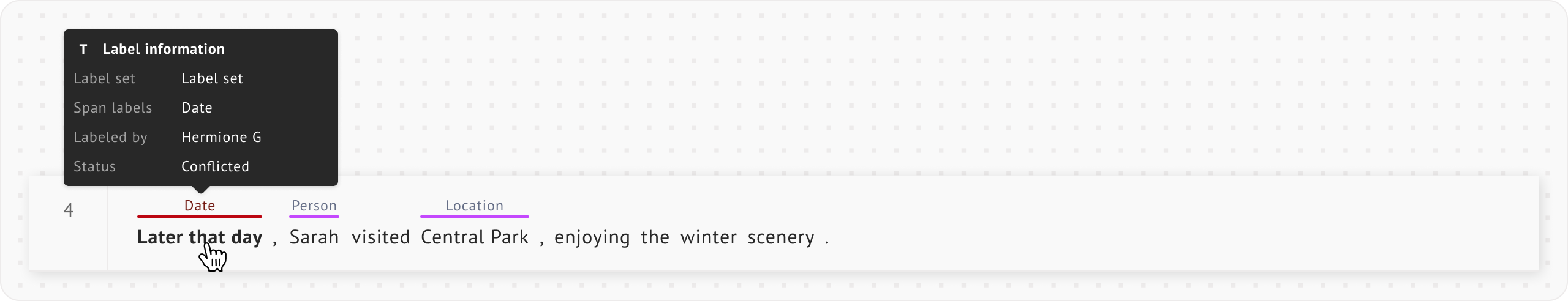

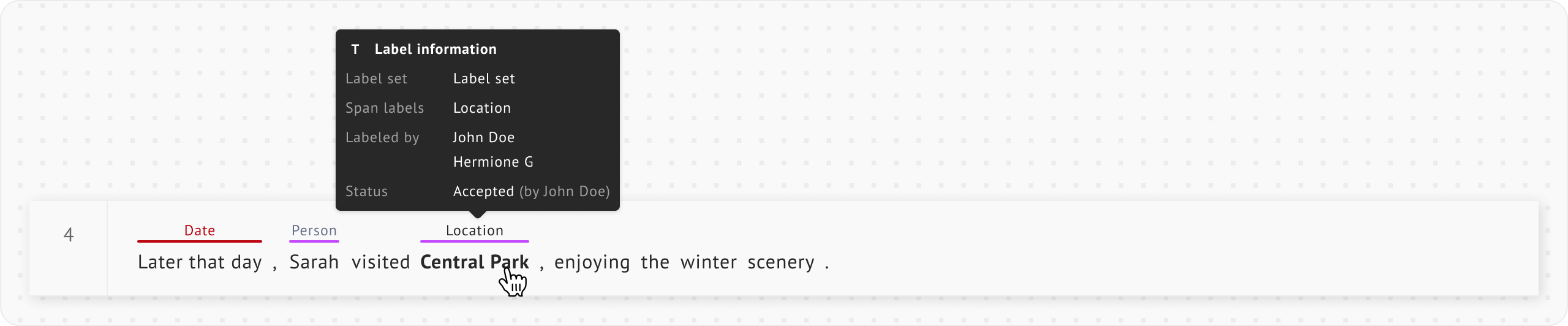

You can also hover over the conflicting label between two labelers and choose the best label answer by clicking the label.

You can also Go to the next conflict and the previous conflict in the Go toolbar. Or by clicking Alt+Shift+Right for going to the next conflict and Alt+Shift+Left for going to the previous conflict.

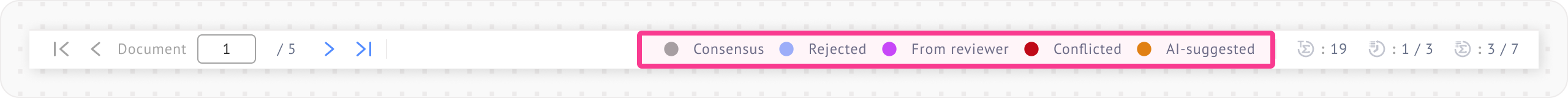

We also differentiate the label color based on the label's status

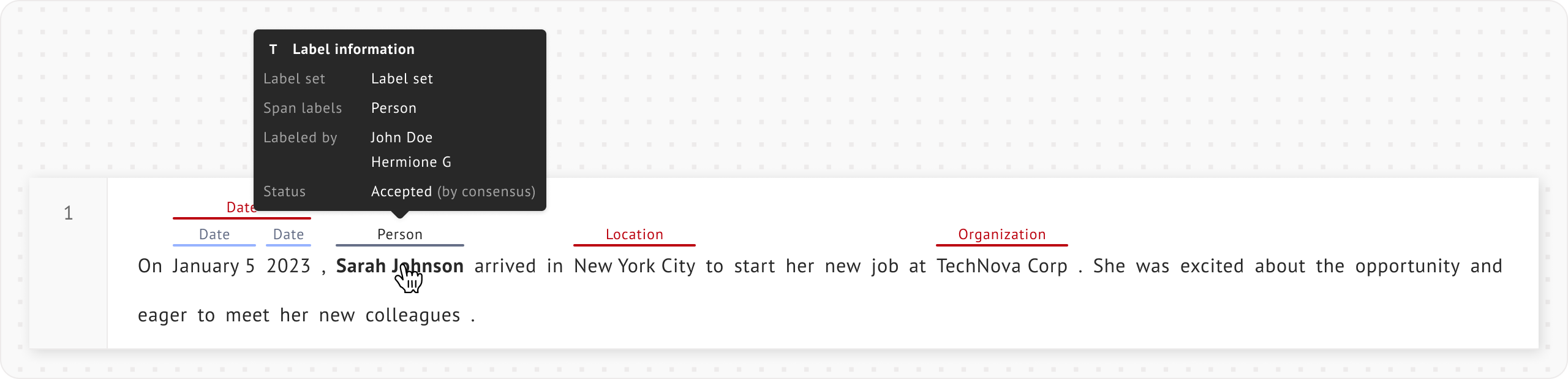

  • Your label color will be gray when your label has already reached consensus among the labelers.

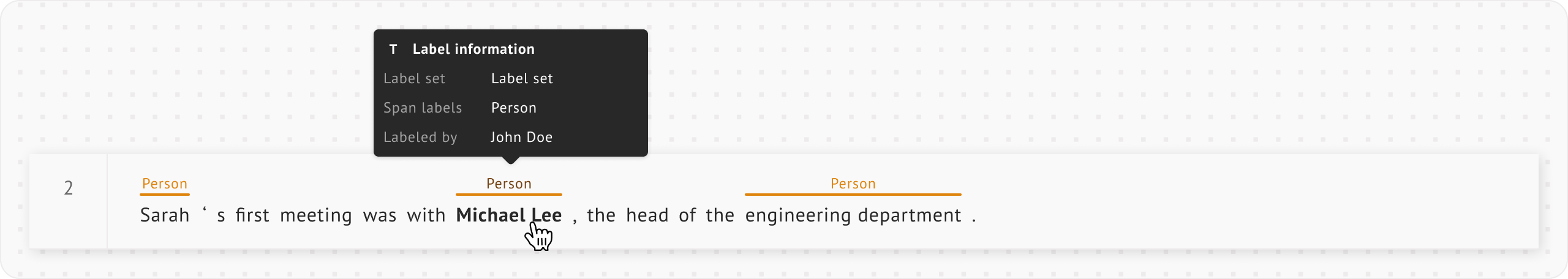

  • Your label color will be yellow when you use our Assisted Labeling Functionality; it will show you that this label comes from the Assisted Labeling Extension by making the color yellow.

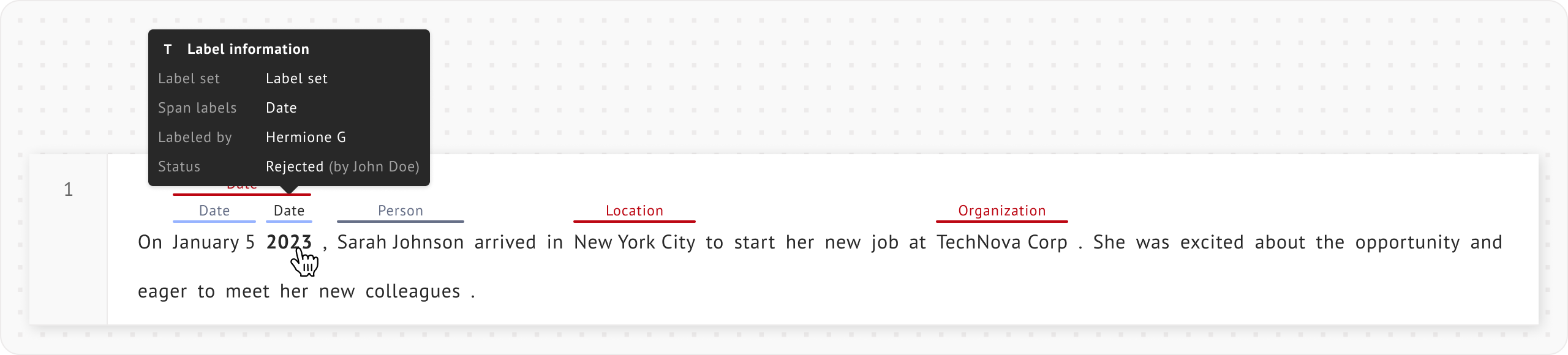

  • Your label color will be blue when your labeler and reviewer have different answers; it will show you that this label has an incorrect or rejected status by the reviewer.

  • Your label color will be purple when your reviewer labels the span; it will show you that the label is labeled by the reviewer.

  • Your label color will be red when the status is unresolved or conflicted with another labeler; it will show you that the label is unresolved or conflicted.

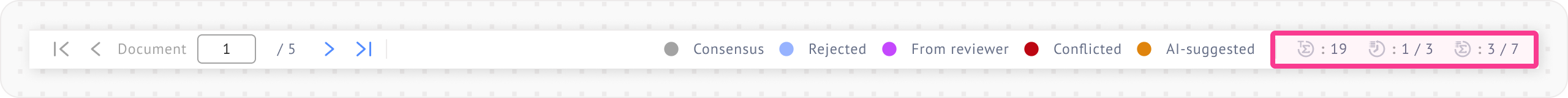

In span labeling, you can also see the number of span labels applied, the last labeled row, and the total solved rows. You can see it in the lower-right corner of the table display

Row Labeling Reviewer Mode

Unlike span labeling, the reviewing process in row labeling involves accepting answers within the Document and Row Labeling extension. When reviewing a row labeling project, there are two primary things:

Table

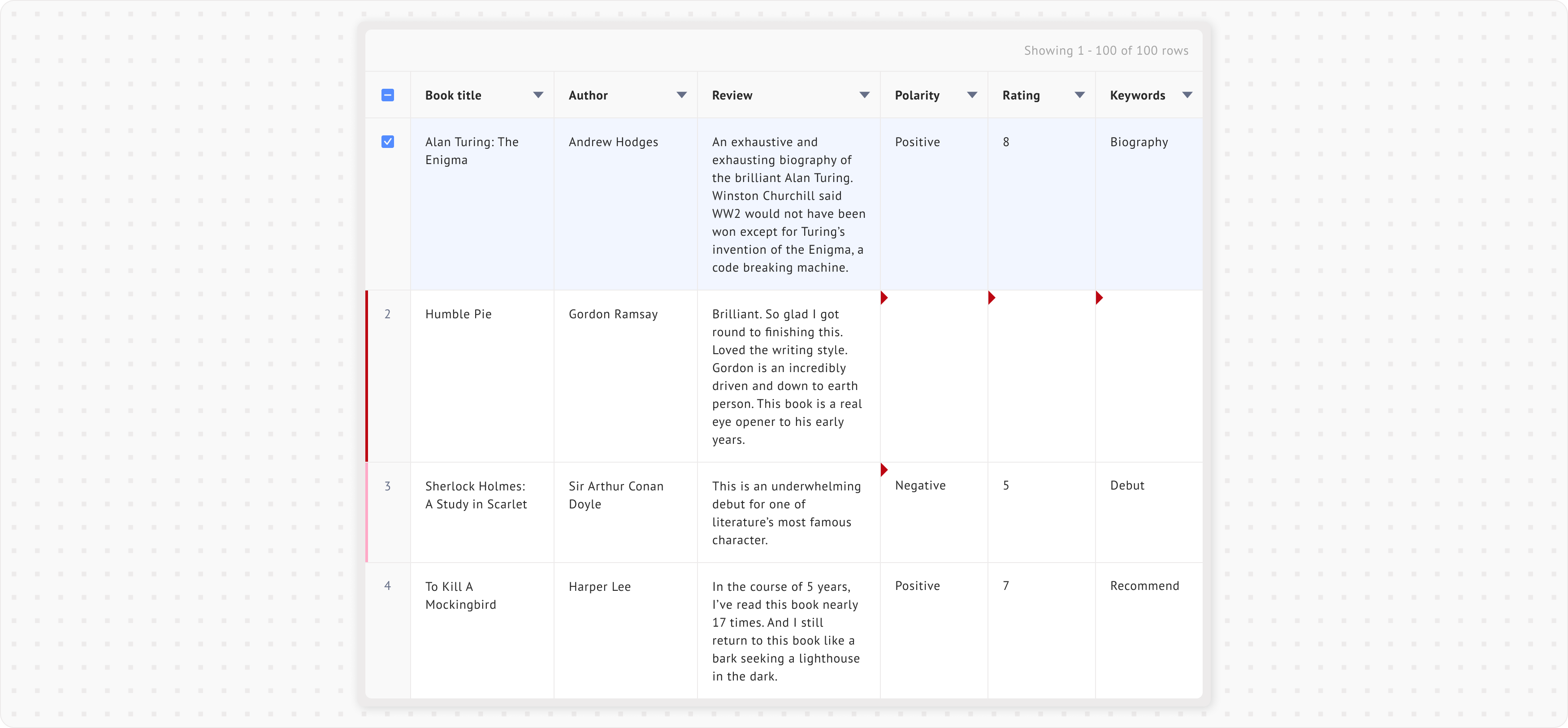

  • Line color

    • White color: Rows containing a consensus or those already resolved by the reviewer.

    • Yellow color: Rows containing both a consensus answer and a conflicting answer. This occurs when a question has multiple values enabled.

    • Red color: Rows without any consensus

    • Blue color: Selected rows.

  • Answer in the table

    Submitting answers in the Document and Row labeling extension will trigger the display of answers in the table.

    • Empty answers in the table

      • No consensus

    • Answers displayed in the table

      • Meet consensus

      • Mix consensus and conflict

        • Only display the consensus answers. The conflicted answer will be displayed after the reviewer resolves it.

      • Resolved answers by a reviewer

Document and row labeling extensions

  • Consensus rows

    • Answers are in shown blue-colored labels

    • Answers are selected in the question field

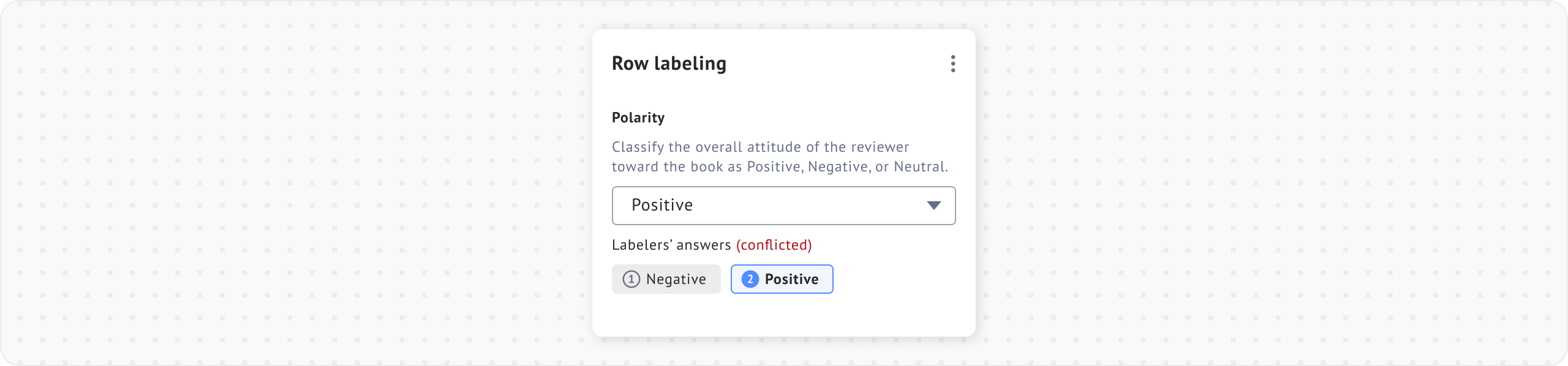

  • Mix consensus and conflict rows

  • Conflict answers are shown in the red-colored labels

  • Consensus answers are shown in blue-colored labels and selected

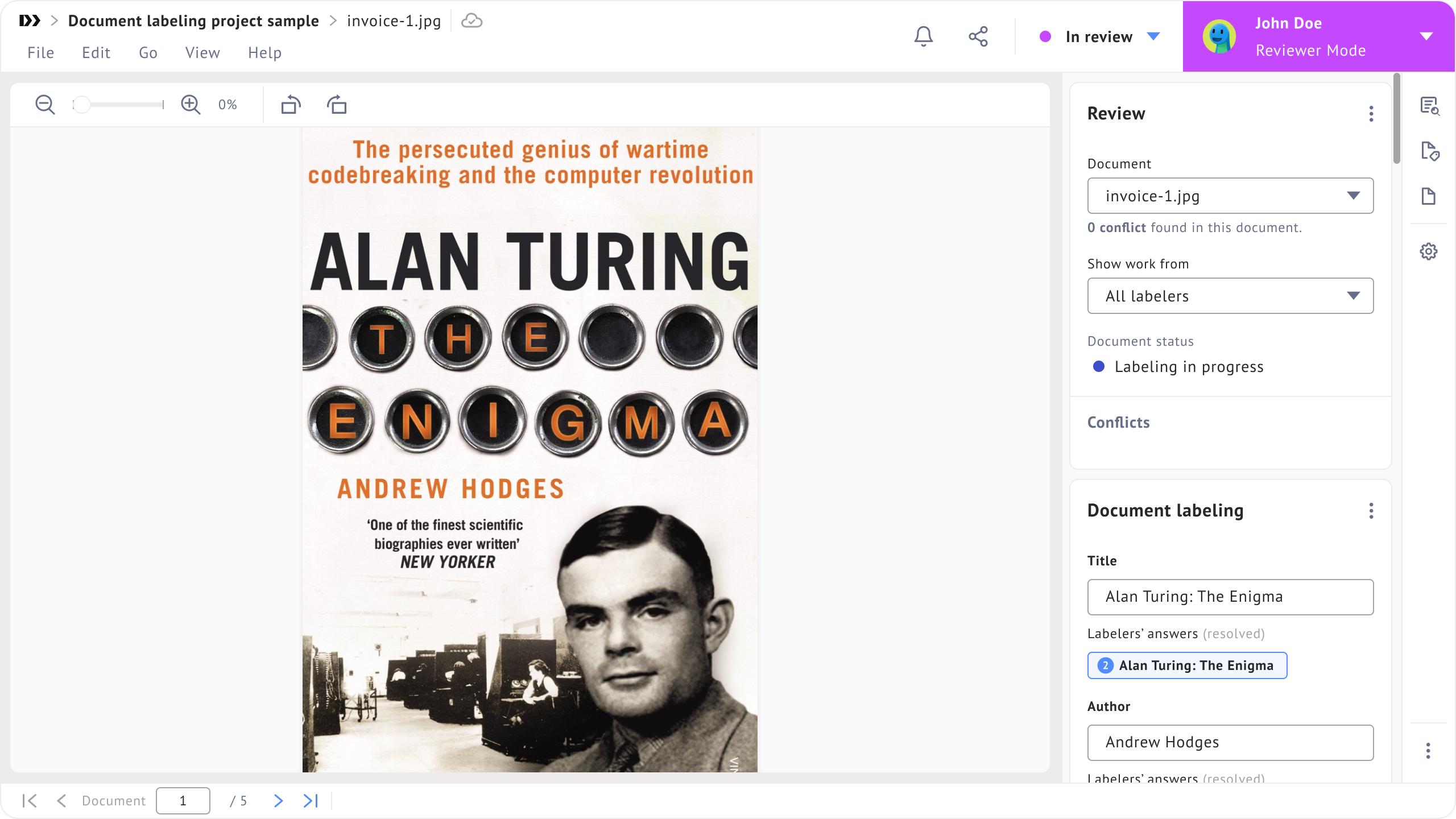

Document Labeling Reviewer Mode

In essence, the behavior is similar to row labeling, but let's delve into the specifics of the Document labeling extension. ✨

Bounding Box Labeling Reviewer Mode

We are planning to enable the review feature for bounding box labeling in the near future. It’s coming soon!
