Import Transformer

With the import transformer, you can import almost anything into Datasaur. Currently, we only accept .csv, .txt, and .json files.

Your new import transformer will have this template:

/**
 * This function should be written as this template and correctly implements ImportFunction interface.
 */
(fileContent: string): SimpleDocument => {
  /// Implement import function here
  return {
    cells: [],
    labels: [],
  };
};

The import transformer is a function that takes the fileContent as a string, parsed using UTF-8 encoding, and returns a SimpleDocument that Datasaur can process.

SimpleDocument is an object that represents a document in Datasaur. It is a combined type that supports span labeling and row labeling. The structure of SimpleDocument is shown below:

• cells: An array of cells. Datasaur documents are stored in a tabular structure. Each cell represents a single table cell. For span-based projects, only a single-column table is currently supported. Each row in the document must have the same number of columns.

  • line: A zero-based number indicating the row.

  • index: A zero-based number indicating the column. For span-based projects, this value can only be set to 0.

  • content: The original content of a cell.

  • tokens: A tokenized version of the content. This field is only used for token-based projects only.

  • metadata: An optional array of key-value data to be stored per cell. You can find the structure and configuration options for metadata here.

    • key: Identifier for the metadata item, represented as a string. Example: author.

    • value: Content or data of the metadata item, represented as a string. Example: John Doe.

    • type: Optional field indicating the type of the value in MIME type.

      • Default: text/plain.

      • Supported type:

        • text/plain: Displays metadata as plain text.

        • text/html: Displays metadata as HTML.

        • image/*: Displays metadata as an image. Supported image formats depend on your browser.

        • audio/*: Displays metadata as an audio player. Supported audio formats depend on your browser.

    • pinned: Boolean that specifies whether metadata is shown at the top of each cell. Metadata that isn’t pinned remains available in the Metadata extension.

    • config: Customizes appearance for text/plain types.

      • color: Determine the text color of the metadata as a string. Accepts any HTML color codes and names.

      • backgroundColor: Determine the background color of the metadata as a string. Accepts any HTML color codes and names.

      • borderColor: Determine the border color of the metadata as a string. Accepts any HTML color codes and names.

• labels: An array of labels.

  • Common fields:

    • id: A unique number to identify the label, to be referred to by the arrow labels.

    • startCellLine: Starting line position.

    • startCellIndex: Starting line column position.

    • startTokenIndex: Starting token index position relative to cell.

    • startCharIndex: Starting character index position relative to the token.

    • endCellLine: Ending line sentence position.

    • endCellIndex: Ending line column position.

    • endTokenIndex: Ending token index position relative to cell.

    • endCharIndex: Ending character index position relative to the token.

    • type: Type of the labels. Must be one of: "SPAN", "ARROW", "BOUNDING_BOX", "TIMESTAMP".

  • Specific fields by its type:

    • "SPAN" or "ARROW"

      • labelSetIndex: Replaces layer. Configures how the label set items are grouped.

      • labelName: Replaces labelSetItemId. The text provided here will be displayed in web UI.

    • "ARROW"

      • originId: ID of a span label as the arrow's origin.

      • destinationId: ID of a span label as the arrow's destination.

    • "BOUNDING_BOX"

      • pageIndex: Page information for multiple page files, such as .pdf and .tiff. Set field to 0 for common image formats, such as .jpg, .png, .bmp, etc.

      • nodeCount: Number of nodes; this is used for future support for polygons. Only supports 4 nodes in a rectangular shape for now.

      • x0: The first node's x value in the screen coordinate system.

      • y0: The first node's y value in the screen coordinate system.

      • x1: The second node's x value in the screen coordinate system.

      • y1: The second node's y value in the screen coordinate system.

      • x2: The third node's x value in the screen coordinate system.

      • y2: The third node's y value in the screen coordinate system.

      • x3: The fourth node's x value in the screen coordinate system.

      • y3: The fourth node's y value in the screen coordinate system.

    • "TIMESTAMP"

      • startTimestampMillis: The starting timestamp in milliseconds.

      • endTimestampMillis: The ending timestamp in milliseconds.

Sample case

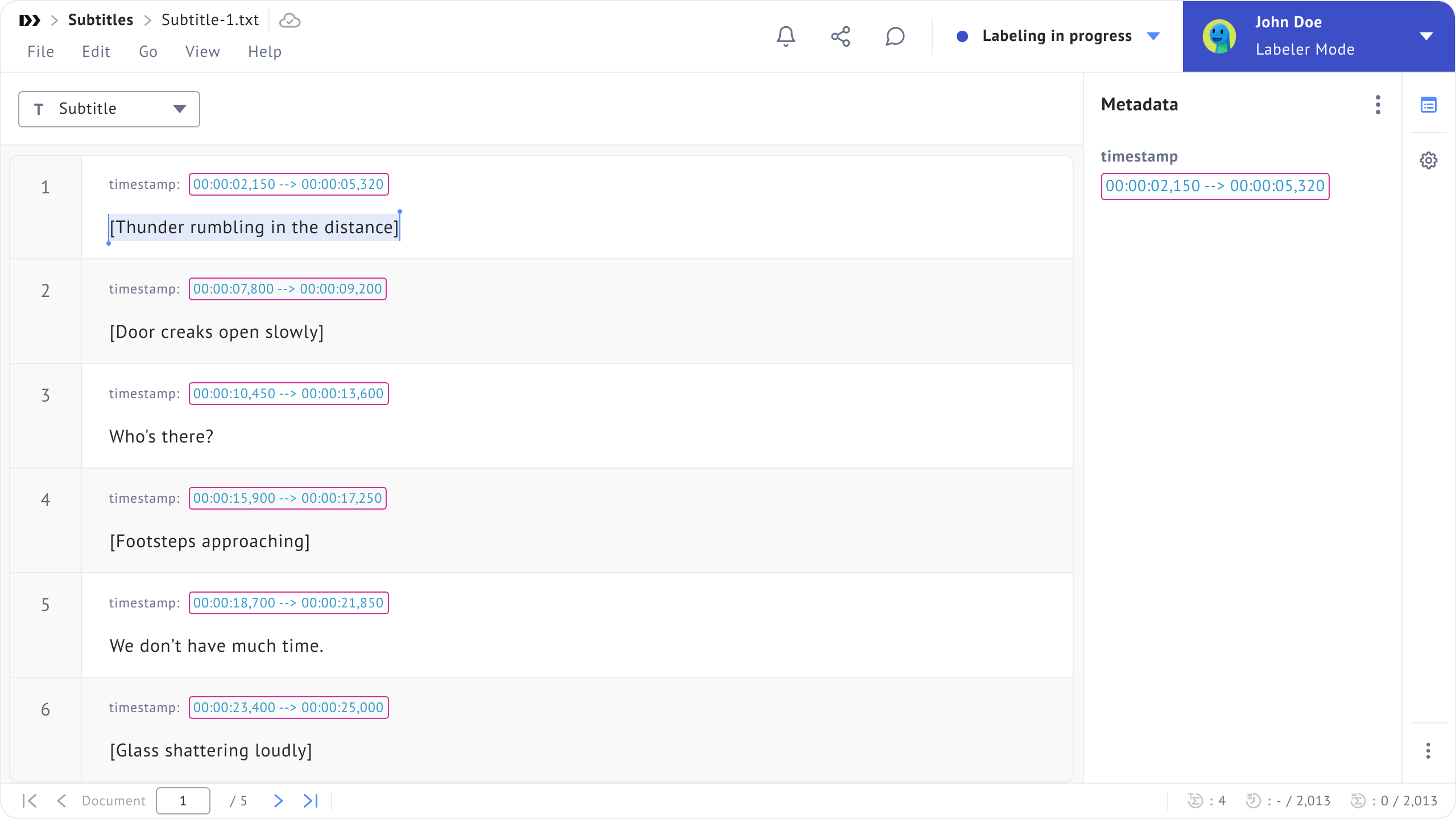

This example shows how to label a .srt subtitle file and display timestamps as metadata. The file transformer script is shown below.

/**
 * This function should be written as this template and correctly implements ImportFunction interface.
 */
(fileContent: string): SimpleDocument => {
    /// Implement import function here
    const lines = fileContent.split('\r\n\r\n');
    let currLine: number = 0;
    const cells: Cell[] = [];
    lines.forEach((line) => {
      const [, timestamp, ...subtitles] = line.split('\r\n');
      subtitles.forEach((subtitle) => {
        cells.push({
          index: 0,
          line: currLine,
          content: subtitle,
          tokens: subtitle.split(' '),
          metadata: [
            {key: "timestamp", value: timestamp, pinned: true, config: { color: "#3399cc", backgroundColor: "", borderColor: "#cc3399"}}
          ]
        });
        currLine += 1;
      });
    });

    const labels: SpanAndArrowLabel[] = [];
    let labelId = 0;

    // Label the first two tokens on the second line as "Example label"
    const secondTokenOnSecondLine = cells[1].tokens[1];
    labels.push({
      id: ++labelId,
      type: "SPAN",
      startCellLine: 1,
      startCellIndex: 0,
      startTokenIndex: 0,
      startCharIndex: 0,
      endCellLine: 1,
      endCellIndex: 0,
      endTokenIndex: 1,
      endCharIndex: secondTokenOnSecondLine.length - 1,
      labelSetIndex: 0,
      labelName: "Example label"
    })

    // Label each occurence of "Sherlock" as "Person's name".
    const sherlock = "sherlock";
    cells.forEach(cell => {
      cell.tokens.forEach((token, tokenIndex) => {
        if (token.toLowerCase() === sherlock) {
          labels.push({
            id: ++labelId,
            type: "SPAN",
            startCellLine: cell.line,
            startCellIndex: cell.index,
            startTokenIndex: tokenIndex,
            startCharIndex: 0,
            endCellLine: cell.line,
            endCellIndex: cell.index,
            endTokenIndex: tokenIndex,
            endCharIndex: token.length - 1,
            labelSetIndex: 0,
            labelName: "Person's name",
          })
        }
      })
    })

    return {
      cells,
      labels,
    };
  };

To get started:

1. Rename your file by adding the .txt extension. You can use the sample file below.

2. Click Create file transformer.

3. Enter a name, select Import, then click Create.

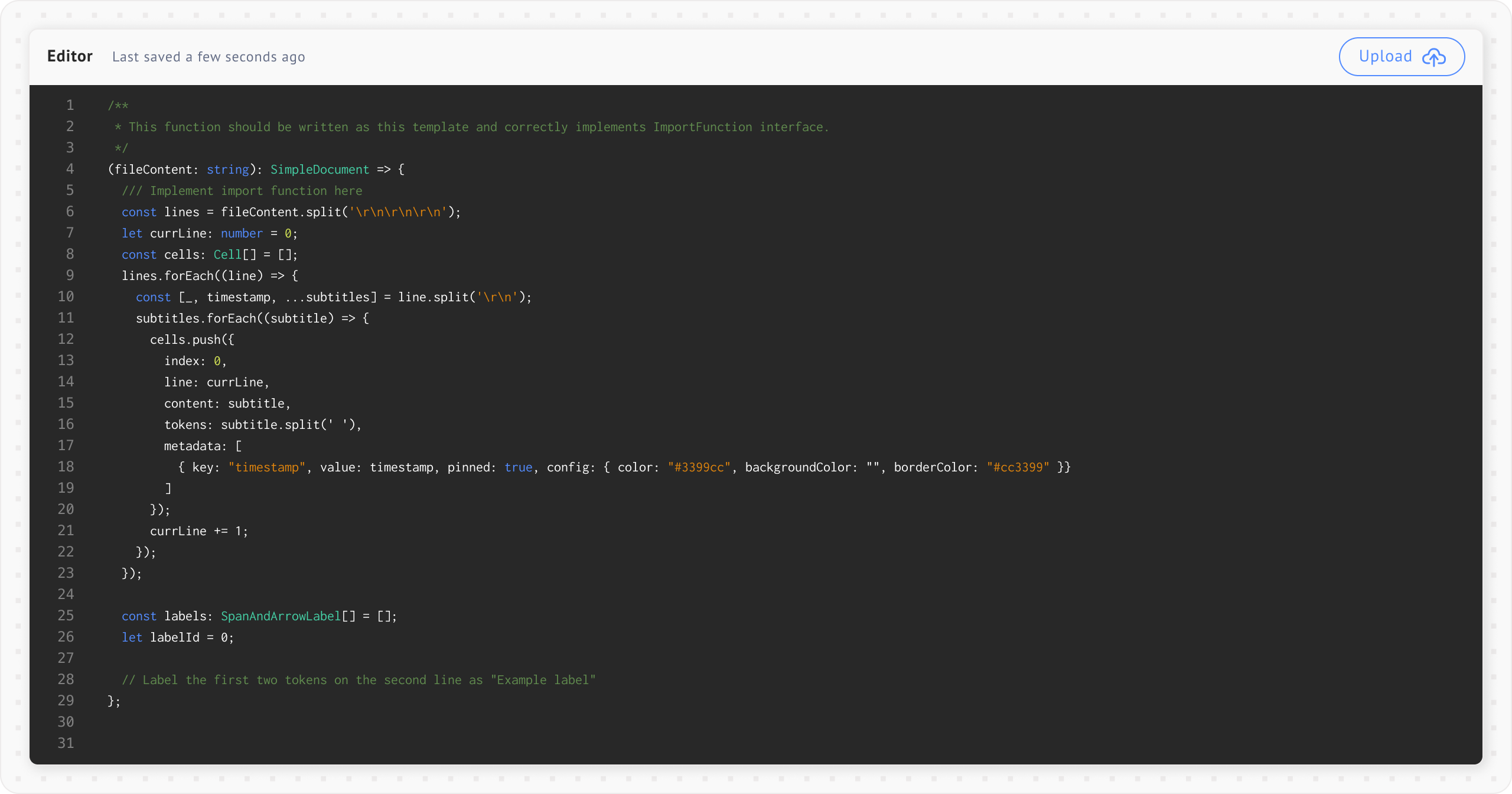

4. Paste the file transformer script to the editor. You can also upload it.


5. Go to Projects page and click Create a project.

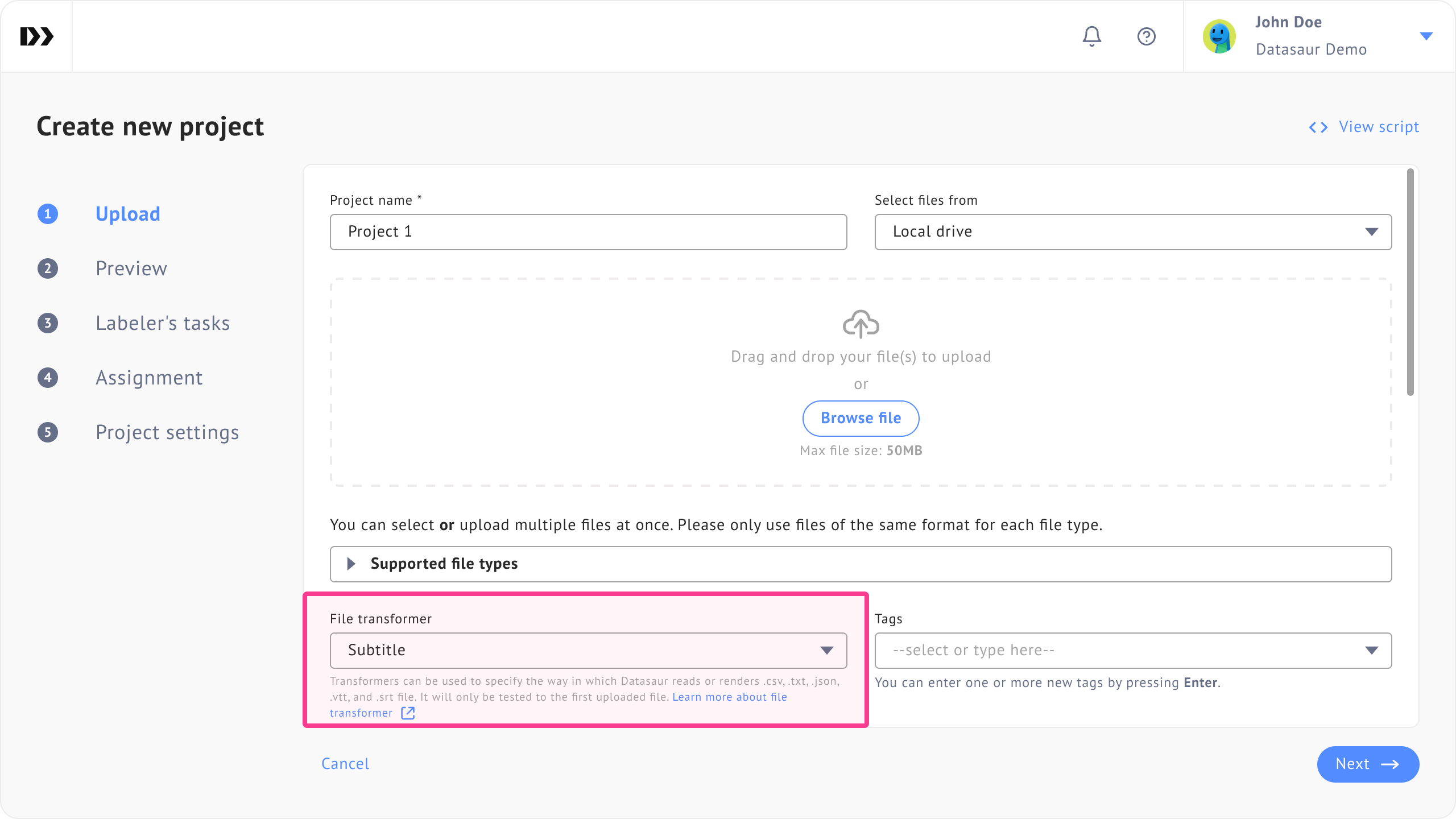

6. In step 1, select the file transformer you just created in the File transformer dropdown. Finish the project creation and launch the project.

Your project is ready!

Notes:

• You need to add Metadata extension to the project.

• If you want the metadata to be available in the text editor, set pinned: true.

• Use HTML code color for text color, border color, and background color.

If you have any questions, please reach out to [e-mail].
