# Custom API

**Supported Labeling Types**: `Span labeling`**,** `Row labeling`**,** `Bounding box labeling` , `Document labeling`

We also support Custom API in case you want to use **your own model** for ML-assisted labeling by simply providing the API URL. Ensure your custom API follows the required request structure to integrate smoothly with the Datasaur platform. Here’s how to set it up:

## Setting Up Your Custom API for ML-Assisted Labeling

1. Create an API: Build an API for your model that adheres to a specific request and response format compatible with the Datasaur App. For guidance, refer to the [API Creation Example](https://github.com/datasaur-ai/ml-assisted-custom-api-example).
2. Request and response structure: You can find example request and response body near the API URL input field or in the examples below.
3. Enter your **API URL**: Once your API is ready, fill in the **API URL** in the designated field under the extension.
4. For span labeling project
   1. **Sentences per request (0 = all)**: Determine how many text you want to include in 1 request to your API service.
5. For row labeling project
   1. **Target text**: Choose the text input that your model will use as a reference.
   2. **Target question**: Select the output column your model will predict.
   3. **Faster prediction speed**: Optionally, toggle this feature to run predictions faster via the backend.
6. **Confidence score**: Adjust the value according to your needs.
7. Apply labels: After setting up, click **Predict labels** to automatically apply labels to your document based on your model's predictions.

### Custom API for Span Based

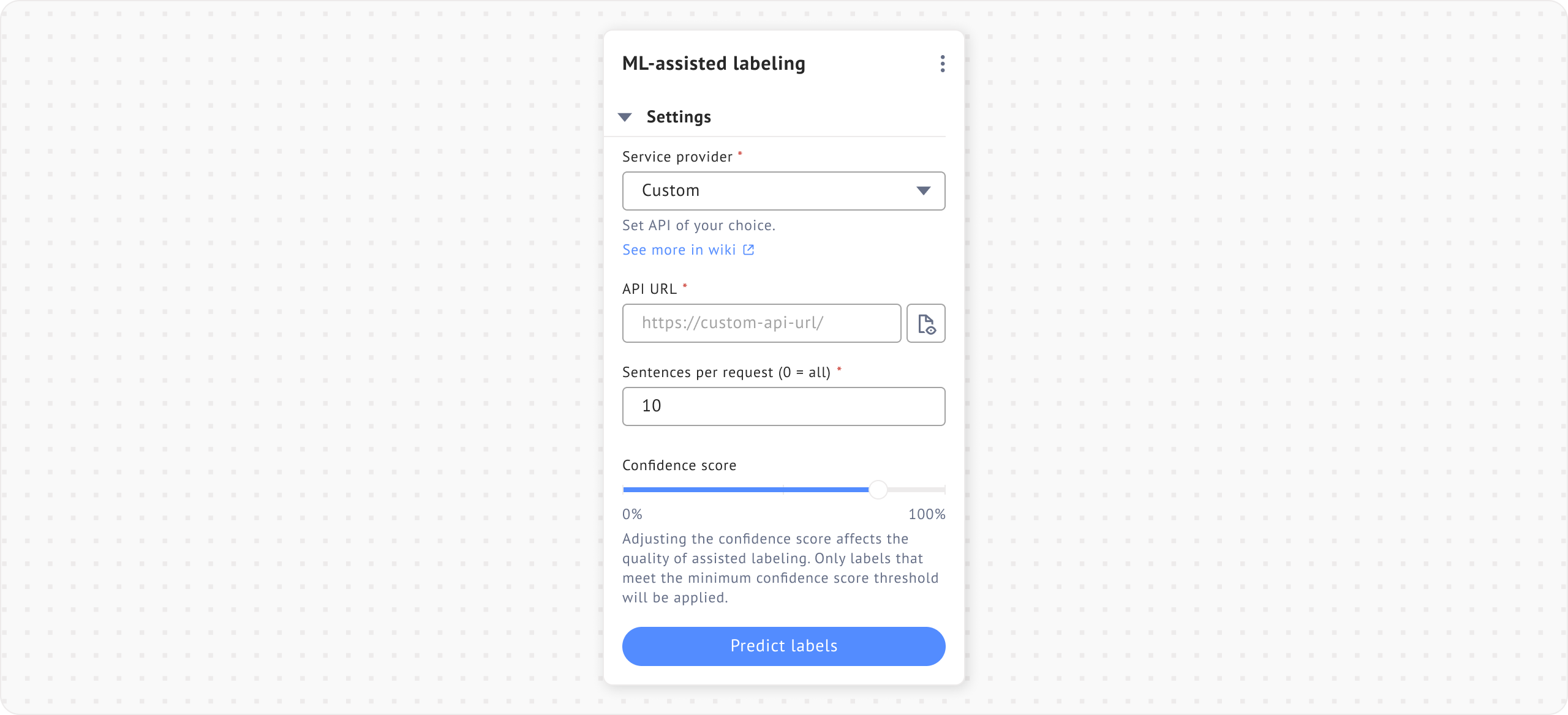

<figure><img src="https://448889121-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MbjY0HseEqu7LtYAt4d%2Fuploads%2Fgit-blob-c1b71695415591c5d8d5a230df8d36bce053dcff%2FExtension%20-%20ML-assisted%20Labeling%20-%20Span%20labeling%20-%20Custom%20-%20highlight.png?alt=media" alt="Image of ML Assisted with Custom API for Span Based"><figcaption><p><strong>ML-assisted labeling</strong> with Custom API for span labeling</p></figcaption></figure>

<details>

<summary>Request Body</summary>

```json
{
    "id": "[project_id]",
    "name": "[project_name]",
    "documents": [
      {
        "id": "[document_id_1]",
        "sentences": [
          {
            "id": 0, // zero-based line number of the document
            "text": "first message",
            "metadata": []
          },
          {
            "id": 1,
            "text": "first message",
            "metadata": []
          },
        ]
      }
    ]
  }
```

</details>

<details>

<summary>Response Body</summary>

```json
{
  "id": "[project_id]",
  "documents": [
    {
      "id": "[document_id_1]",
      "labels": [
        {
          "id": 0,
          "entities": [
            {
              "label": "LOCATION",
              "start_char": 10,
              "end_char": 18,
              "layer": 0
            },
            {
              "label": "PERSON",
              "start_char": 20,
              "end_char": 29,
              "layer": 1
            },
          ]
        },
        {
          "id": 1,
          "entities": []
        }
      ]
    }
  ]
}
```

</details>

### Custom API for Row Based

<figure><img src="https://448889121-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MbjY0HseEqu7LtYAt4d%2Fuploads%2Fgit-blob-f26933a3bafc2ed2cb59ca7313cd8867e1536624%2FExtension%20-%20ML-assisted%20Labeling%20-%20Row%20labeling%20-%20Custom%20-%20highlight.png?alt=media" alt="Image of ML Assisted with Custom API for Row Based"><figcaption><p><strong>ML-assisted labeling</strong> with Custom API for row labeling</p></figcaption></figure>

<details>

<summary>Request Body</summary>

```json
[
  { "id": 0, "text": "I feel good." },
  { "id": 1, "text": "I don't like it." }
]
```

</details>

<details>

<summary>Response Body</summary>

```json
[
  { "id": 0, "label": "POSITIVE" },
  { "id": 1, "label": "NEGATIVE" }
]
```

</details>

### Custom API for Bounding Box Labeling

<figure><img src="https://448889121-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MbjY0HseEqu7LtYAt4d%2Fuploads%2Fgit-blob-1c9630f33ff9f118f2380068a1100b4b8cbf51d7%2FExtension%20-%20ML-assisted%20Labeling%20-%20bounding%20box%20labeling%20-%20Custom%20-%20highlight.png?alt=media" alt="Image of ML Assisted with Custom API for Bounding Box Labeling"><figcaption><p><strong>ML-assisted labeling</strong> with Custom API for bounding box labeling</p></figcaption></figure>

<details>

<summary>Request Body</summary>

```json
{
    "document": {
      "id": "[document_id_1]",
      "presignedURL": "[document_presigned_url]",
    },
    "readingResult": [
      {
        "id":"[bbox_id_1]",
        "label": "O",
        "caption": "First"
        "shapes": [
          {
            "pageIndex": 0,
            "points": [
                {
                  "x": 211.51411561127316,
                  "y": 99.08677657682311
                },
                {
                  "x": 266.385241834969,
                  "y": 99.08677657682311
                },
                {
                  "x": 266.385241834969,
                  "y": 105.74680188808318
                },
                {
                  "x": 211.51411561127316,
                  "y": 105.74680188808318
                }
              ]
            }
          }
        ]
      },
      {
        "id":"[bbox_id_2]",
        "label": "O",
        "caption": "Message"
        "shapes": [
          {
            "pageIndex": 0,
            "points": [
                {
                  "x": 269.38763779813405,
                  "y": 99.09397660418664
                },
                {
                  "x": 318.98117111775315,
                  "y": 99.09397660418664
                },
                {
                  "x": 318.98117111775315,
                  "y": 105.73240183335614
                },
                {
                  "x": 269.38763779813405,
                  "y": 105.73240183335614
                }
              ]
            }
          }
        ]
      }
    ]
  }
```

</details>

<details>

<summary>Response Body</summary>

```json
{
    "id": "[document_id_1]",
    "labels": [
      {
        "id":"[bbox_id_1]",
        "label": "LOCATION",
        "caption": "First",
        "confidence_score": 0.90,
        "shapes": [
          {
            "pageIndex": 0,
            "points": [
              {
                "x": 211.51411561127316,
                "y": 99.08677657682311
              },
              {
                "x": 266.385241834969,
                "y": 99.08677657682311
              },
              {
                "x": 266.385241834969,
                "y": 105.74680188808318
              },
              {
                "x": 211.51411561127316,
                "y": 105.74680188808318
              }
            ]
          }
        ]
      },
      {
        "id":"[bbox_id_2]",
        "label": "PERSON",
        "caption": "Message",
        "confidence_score": 0.90,
        "shapes": [
          {
            "pageIndex": 0,
            "points": [
              {
                "x": 269.38763779813405,
                "y": 99.09397660418664
              },
              {
                "x": 318.98117111775315,
                "y": 99.09397660418664
              },
              {
                "x": 318.98117111775315,
                "y": 105.73240183335614
              },
              {
                "x": 269.38763779813405,
                "y": 105.73240183335614
              }
            ]
          }
        ]
      }
    ]
  }
```

</details>

### Custom API for Document Based

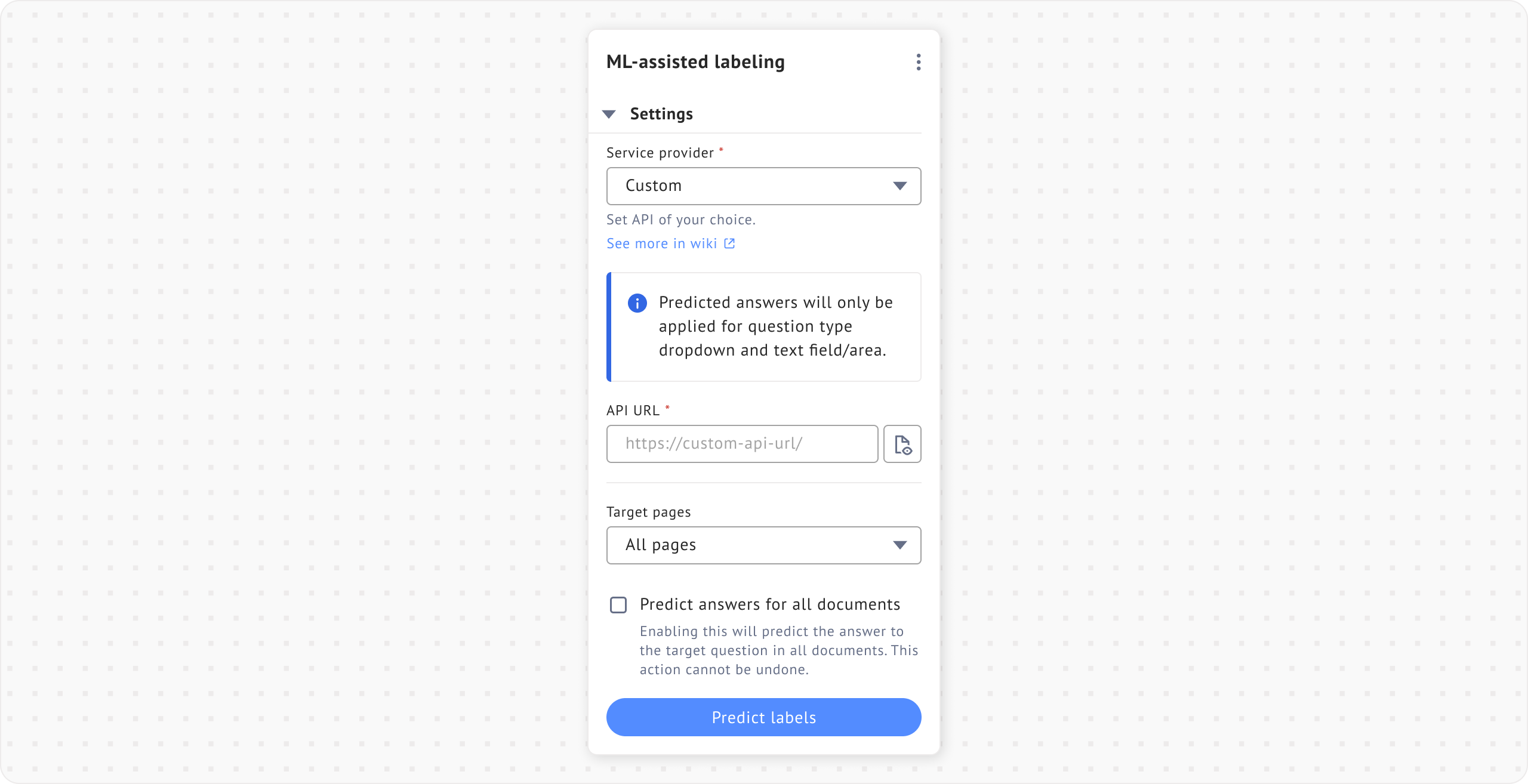

<figure><img src="https://448889121-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MbjY0HseEqu7LtYAt4d%2Fuploads%2Fgit-blob-97ae7995befe5d7c9bfb4ac5b0dd93f332f7f17e%2FExtension%20-%20ML-assisted%20Labeling%20-%20document%20labeling%20-%20Custom%20-%20highlight.png?alt=media" alt=""><figcaption><p><strong>ML-assisted labeling</strong> with Custom API for document labeling</p></figcaption></figure>

<details>

<summary>Request Body</summary>

```json
{
  "document": {
    "id": "[document_id_1]",
    "presignedURL": "[document_presigned_url]"
  }
}
```

</details>

<details>

<summary>Response Body</summary>

```json
{
  "id": "[document_id_1]",
  "[your_document_question_a]": "POSITIVE",
  "[your_document_question_b_with_multiple_answer]": ["NEWS", "ARTICLE"]
}
```

</details>


---
